Product: D83320-WHI, W 30 mm x H 620 mm, 3000°K — Datasheet ✓

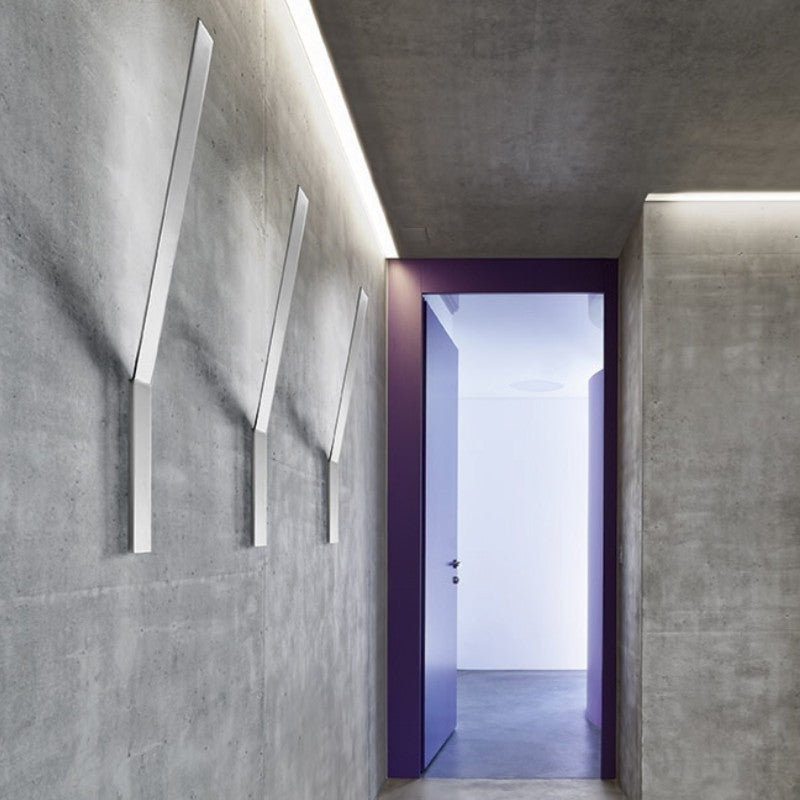

Short description: Ypsilon - Wall / Recessed - 110mm / 4 1/4" - 13W LED - 3000K - White.

---

European Quality. Discounted prices. In-stock products to illuminate your space. Canada and the United States. Lighting experts available.
Accessible and affordable lighting fixtures that were recently in the Zaneen program. Massive savings. While quantities last!

---

General
Series: Ypsilon
Brand: Panzeri
Division: Design
Mounting Type: Recessed
Mounting Location: Wall
Subcategory: Wall Effect

---

Physical
Shape: Rectangle
Width (mm): 30
Width (in): 1 3/16
Depth (mm): 40
Height (in): 24 7/16
Depth (in): 1 9/16
Height (mm): 620
Extension (mm): 110
Extension (in): 4 5/16
Light Distribution: Indirect
Weight (kg): 0.975
Weight (lbs): 2.15
Fixture Material: Metal

---

Electrical
Input Wattage Range: 10 - 19 W
Lamp Type: LED
Input Wattage (W): 13
Total Output Wattage (W): 11
Dimming: Non-Dimmable
Driver Included: Yes
Driver Location: Integrated
Driver Type: Constant Current
Driver Class: Class 2
Input Voltage (V): 120
Constant Current (MA): 700
Upon Request: (Not included, see components) Remote:0-10Vdc dimming / 277Vac / (Included) Integral: Phase dimming

---

LED
Color Temperature (°K): 3000
Max. Delivered Lumen (lm): 1118
Nominal Lumen (lm): 1200
CRI: >80 CRI
Lamp Life (hrs): 50000

---

Ratings and Certifications
Certified By: CSA Certified to UL and CSA Standards
IP rating: IP20
