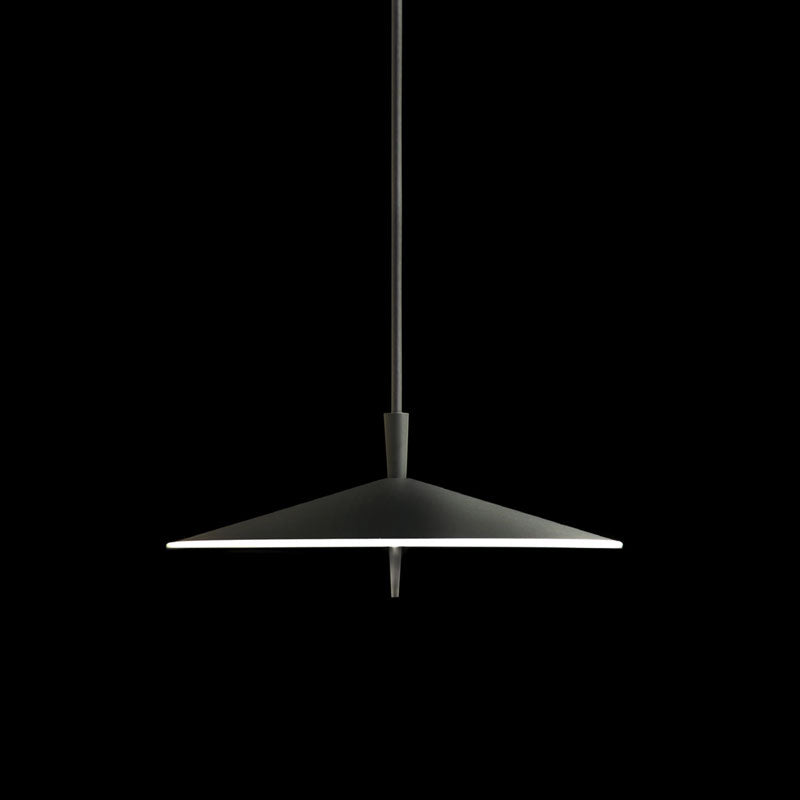

Product: D91154, ⌀ 200mm, H 86 mm, 2700°K — Datasheet ✓
Short description: Pla - Suspension - Pendant - 3 x 4W LED PCB, 120V, 2700K, 3 x 300lm, Grey Lacquer.

---

European Quality. Discounted prices. In-stock products to illuminate your space. Canada and the United States. Lighting experts available.
Accessible and affordable lighting fixtures that were recently in the Zaneen program. Massive savings. While quantities last!

---

General
Series: Pla
Brand: Milan
Division: Design
Mounting Type: Suspension
Mounting Location: Ceiling
Subcategory: Pendant

---

Physical
Diameter (mm): 200
Diameter (in): 7 7/8
Height (in): 3 3/8
Height (mm): 86
Max. Overall Height (mm): 2900
Max. Overall Height (in): 114 3/16
Weight (kg): 2.7
Weight (lbs): 6

---

Electrical
Lamp Type: LED
Total Output Wattage (W): 12
Dimming: Tri-Mode (Non-Dimming and Phase Dimming (120Vac only) and 0-10V Dimming)
Driver Included: Yes
Driver Location: Integrated
Driver Type: Constant Current 120Vac
Driver Class: Class 2
Input Voltage (V): 120 - 277
Constant Current (MA): 350
Upon Request: Remote 0-10Vdc / phase dimming @120Vac only / 277Vac

---

LED
Number of LEDs: 3 x 4W
Color Temperature (°K): 2700
Nominal Lumen (lm): 900
CRI: >80 CRI
Lamp Life (hrs): 50000

---

Ratings and Certifications
Certified By: CSA Certified to UL and CSA Standards
IP rating: IP20
