Product: D12049, L 300 mm x W 300 mm x H 80 mm — Datasheet ✓

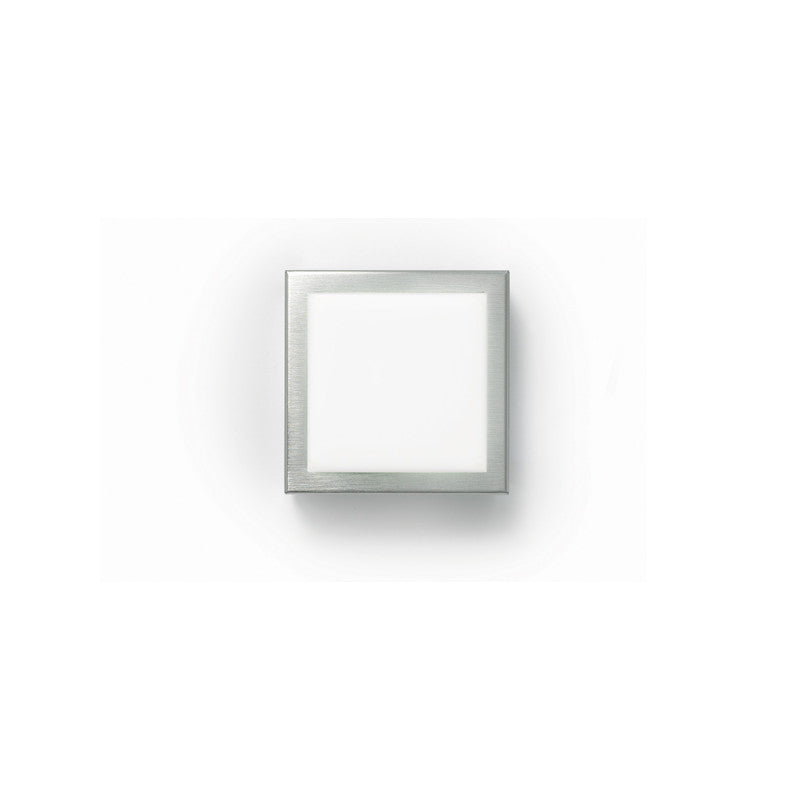

Short description: Flat Q - Surface - Ceiling / Wall - 298mm / 11 3/4" x 298mm / 11 3/4" - 2 x 10W Retrofit LED / 18W CFL - 2G11 - PL-L - Brushed Nickel.

---

European Quality. Discounted prices. In-stock products to illuminate your space. Canada and the United States. Lighting experts available.
Accessible and affordable lighting fixtures that were recently in the Zaneen program. Massive savings. While quantities last!

---

General
Series: Flat Q
Division: Design
Mounting Type: Surface
Mounting Location: Ceiling

---

Physical
Length (mm): 300
Length (in): 11 3/4
Width (mm): 300
Width (in): 11 3/4
Height (in): 3 1/8
Height (mm): 80
Extension (mm): 80
Extension (in): 3 1/8
Weight (kg): 2.26
Diffuser: Opal White Satin Acrylic
Fixture Material: Metal

---

Electrical
Number of Lamps: 2
Lamp Type: LED Retrofit / CFL
Bulb Included: Bulb Not Included
Total Output Wattage (W): 20 / 36
Max. Wattage Per Lamp (W): 10 / 18
Lamp Base: 2G11
Driver Included: Yes
Driver Location: Integrated
Driver Type: Ballast - Universal
Input Voltage (V): 120 - 277

---

Ratings and Certifications
Certified By: CSA Certified to UL and CSA Standards
IP rating: IP20
