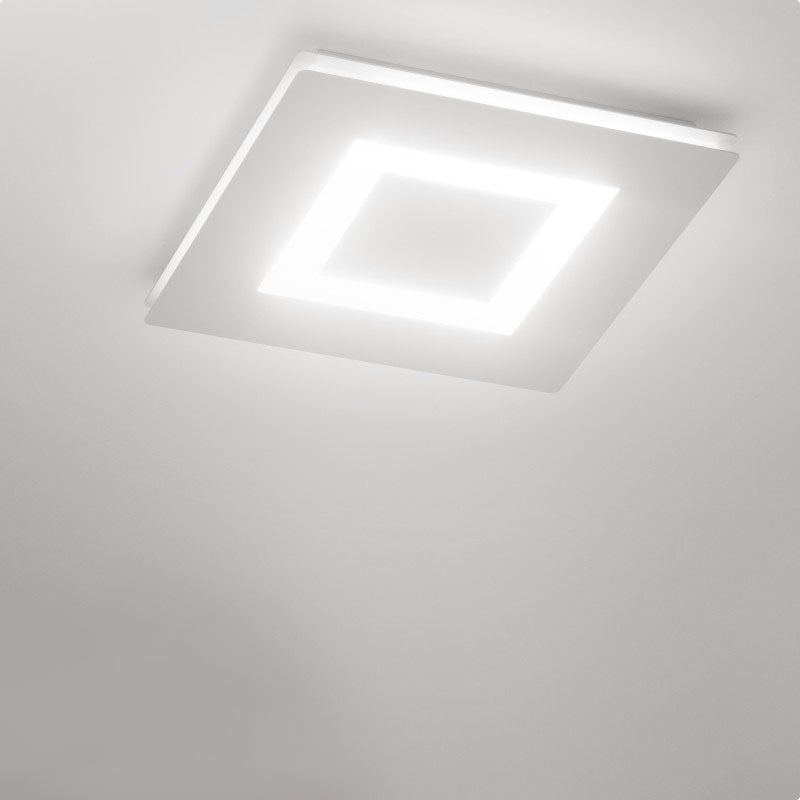

Product: D82230-WHI, L 510 mm x W 510 mm x H 45 mm, 3000°K — Datasheet ✓
Short description: Flat - Ceiling - 510mm / 20" x 150mm / 20" - 46W LED - 3000K - White.

---

European Quality. Discounted prices. In-stock products to illuminate your space. Canada and the United States. Lighting experts available.
Accessible and affordable lighting fixtures that were recently in the Zaneen program. Massive savings. While quantities last!

---

General
Series: Flat
Brand: Panzeri
Division: Design
Mounting Type: Surface
Mounting Location: Ceiling
Subcategory: Ambient

---

Physical
Shape: Square
Length (mm): 510
Length (in): 20 1/16
Width (mm): 510
Width (in): 20 1/16
Height (in): 1 3/4
Height (mm): 45
Light Distribution: Direct / Indirect
Weight (kg): 5.236
Weight (lbs): 11.54
Diffuser: Polycarbonate - Opal
Fixture Material: Metal

---

Electrical
Input Wattage Range: 30 - 49 W
Lamp Type: LED
Input Wattage (W): 48
Total Output Wattage (W): 46
Dimming: Non-Dimming / Phase Dimming (120Vac only) / 0-10V Dimming
Driver Included: Yes
Driver Location: Integrated
Driver Type: Constant Current - Universal
Driver Class: Class 2
Input Voltage (V): 120 - 277
Constant Current (MA): 350

---

LED
Color Temperature (°K): 3000
Max. Delivered Lumen (lm): 3202
Nominal Lumen (lm): 5700
CRI: >80 CRI
Efficiency (%): 56.175%
Lamp Life (hrs): 70000

---

Ratings and Certifications
Certified By: CSA Certified to UL and CSA Standards
IP rating: IP40
