Product: D81429-WHI, L 510 mm x W 510 mm x H 45 mm, 3000°K — Datasheet ✓

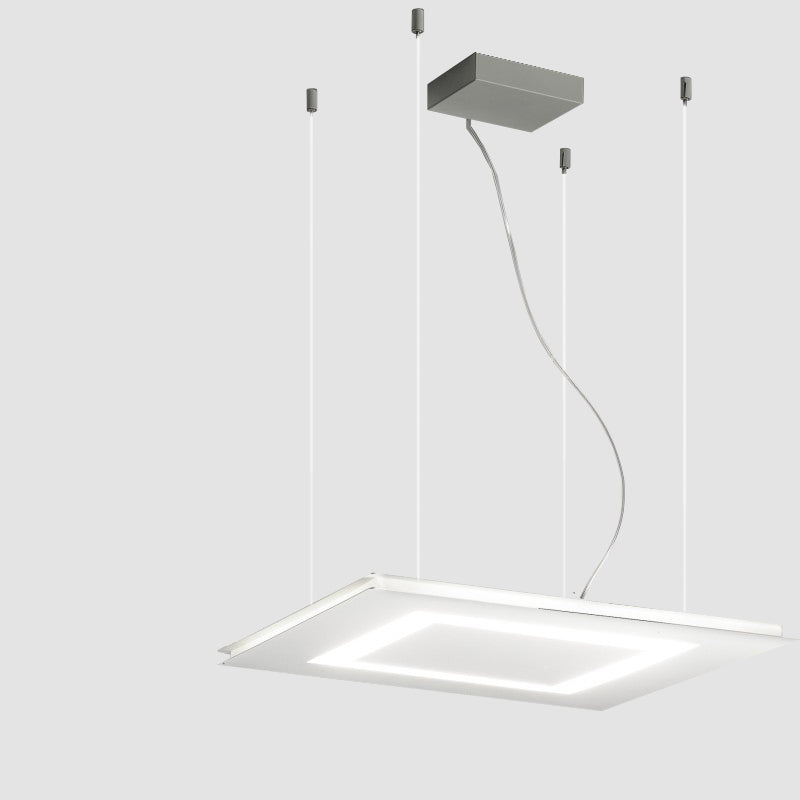

Short description: Flat - Suspension - 51cm/20" - 1x46W + 1x11.5W LED - Dimmable - White.

---

European Quality. Discounted prices. In-stock products to illuminate your space. Canada and the United States. Lighting experts available.
Accessible and affordable lighting fixtures that were recently in the Zaneen program. Massive savings. While quantities last!

---

General
Series: Flat
Brand: Panzeri
Division: Design
Mounting Type: Suspension
Mounting Location: Ceiling
Subcategory: Ambient

---

Physical
Shape: Square
Length (mm): 510
Length (in): 20 1/16
Width (mm): 510
Width (in): 20 1/16
Height (in): 1 3/4
Height (mm): 45
Max. Overall Height (mm): 2510
Max. Overall Height (in): 98 13/16
Light Distribution: Direct / Indirect
Weight (kg): 7.21
Weight (lbs): 15.89
Diffuser: White Blown Glass
Fixture Material: Metal

---

Electrical
Lamp Type: LED
Input Wattage (W): 61
Total Output Wattage (W): 57.5
Max. Wattage Per Lamp (W): 46 / 11.5
Dimming: Tri-Mode (Non-Dimming and Phase Dimming (120Vac only) and 0-10V Dimming)
Driver Included: Yes
Driver Location: Integrated
Driver Type: Constant Current - Universal
Driver Class: Class 2
Input Voltage (V): 120 - 277
Constant Current (MA): 700

---

LED
Color Temperature (°K): 3000
Max. Delivered Lumen (lm): 4077
Nominal Lumen (lm): 4800lm down+1200lm up
CRI: >80 CRI
Lamp Life (hrs): 60000

---

Ratings and Certifications
Certified By: CSA Certified to UL and CSA Standards
IP rating: IP40
